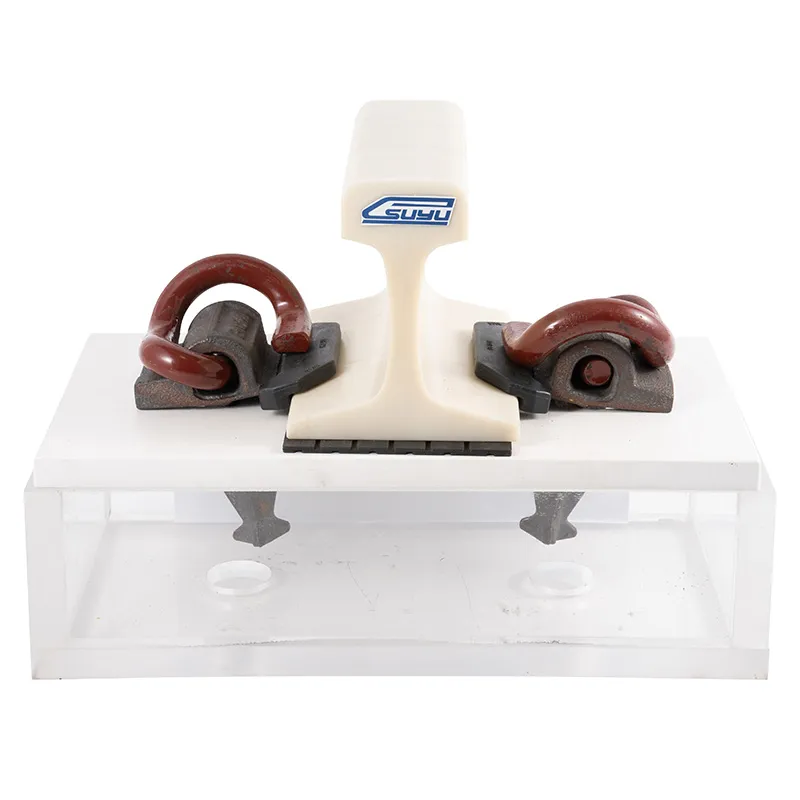

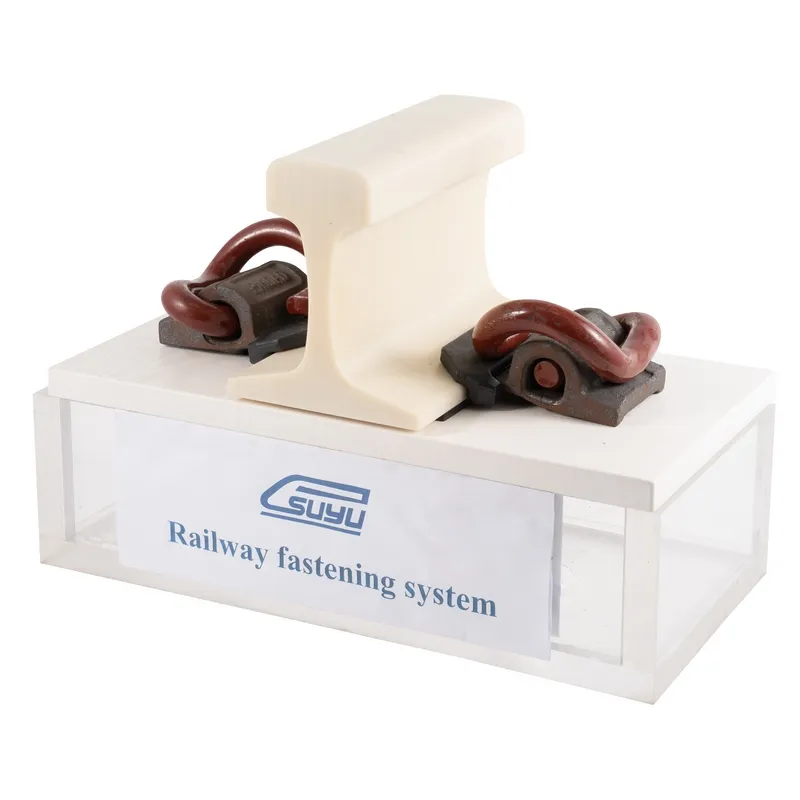

The E-clip rail fastening system is a widely adopted solution for securing railway tracks, featuring E-clip fasteners along with iron pads or embedded fittings that connect the rails to the sleepers. Its design effectively absorbs and disperses vibrations and shock forces from railway operations, ensuring that the rails remain securely fixed and preventing track loosening or movement. Suitable for high-speed rail, heavy rail, and high-speed railway systems, the E-Clip system is known for its reliability and performance across diverse rail environments, including those with high traffic and extreme weather conditions.
Its simplistic design facilitates easy installation and maintenance, which contributes to its global popularity. By enhancing track stability and safety, the E-clip rail fastening system extends the lifespan of railway infrastructure and reduces the frequency of track repairs.

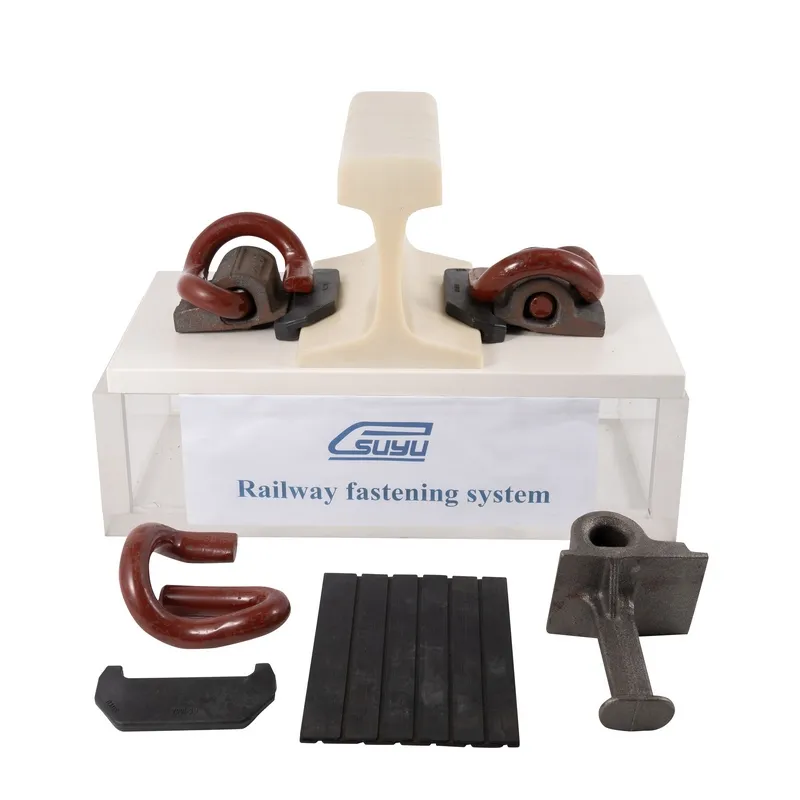

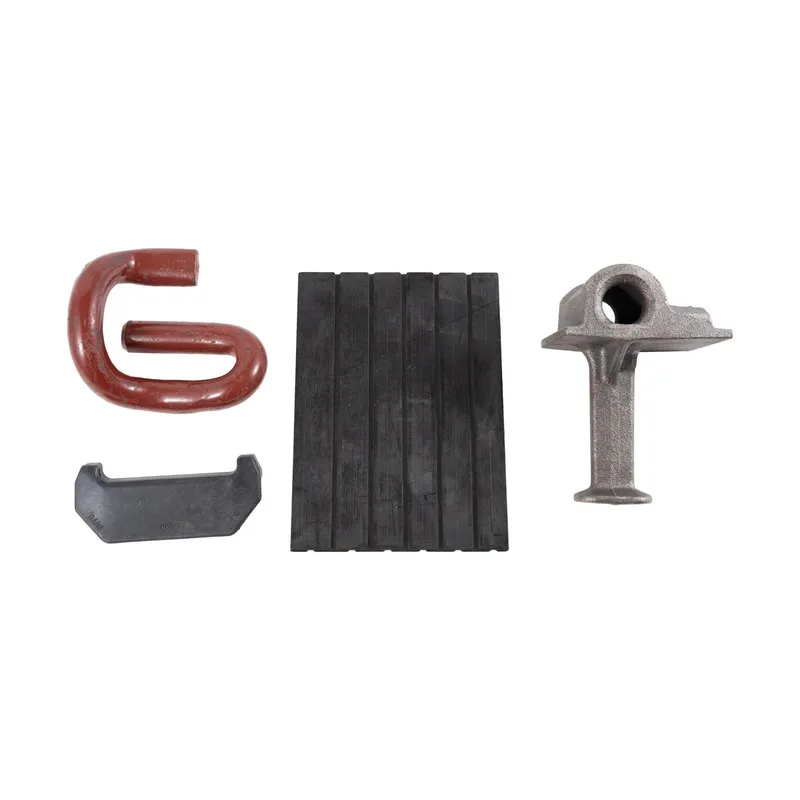

The complete E-clip fastening system for each sleeper consists of the following components

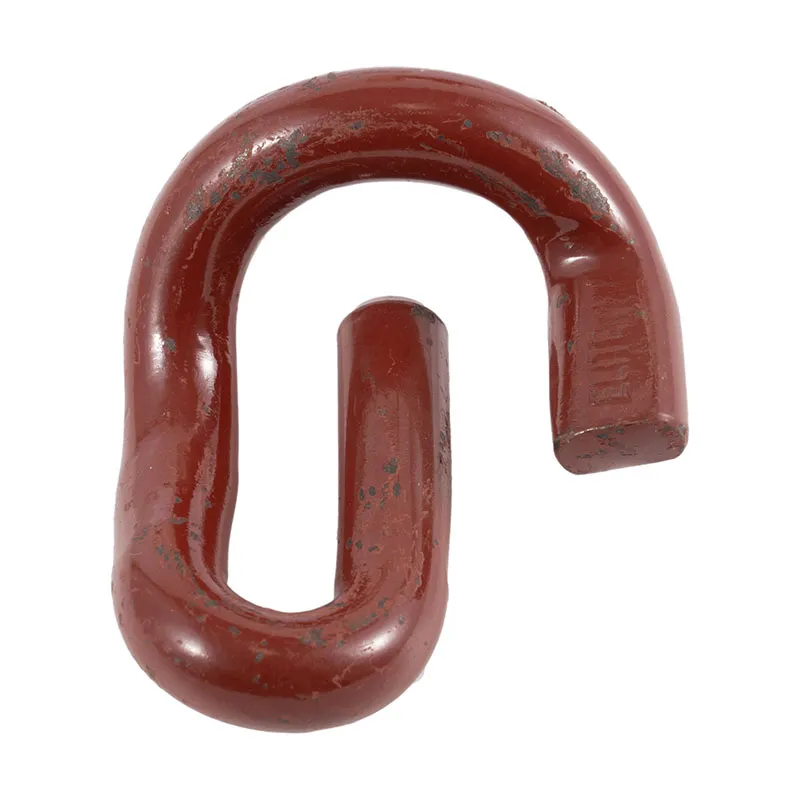

4 pcs E-clip

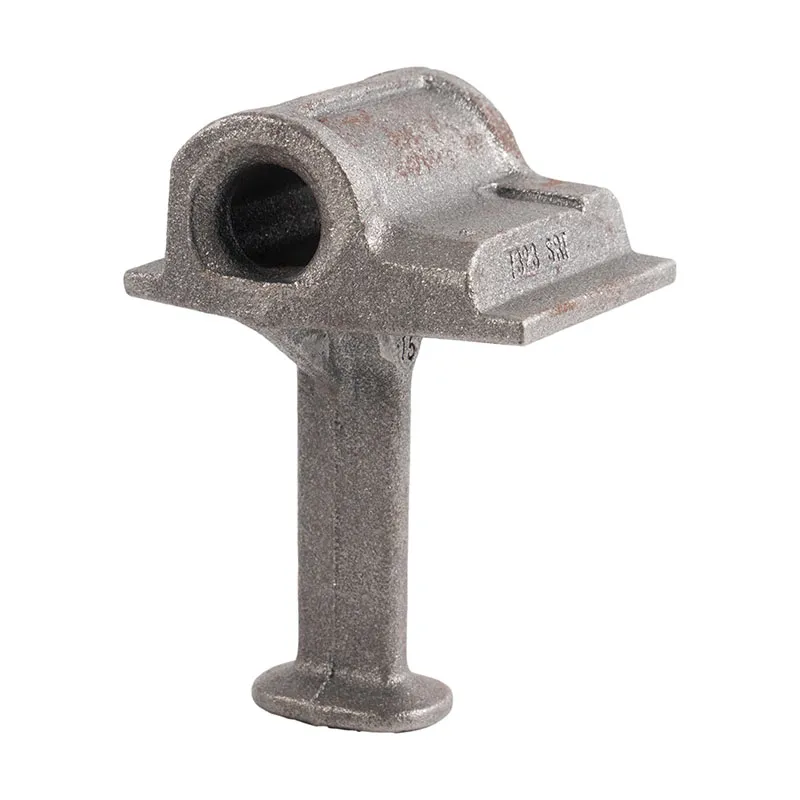

4 pcs Shoulder
4 pcs Insulator

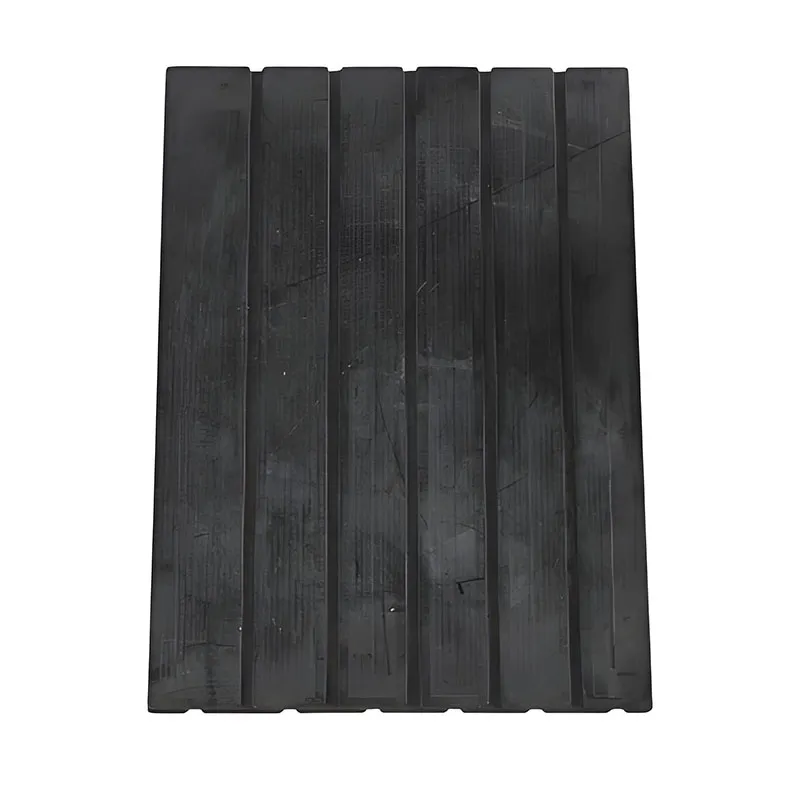

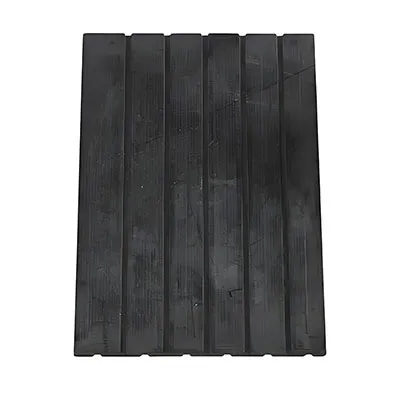

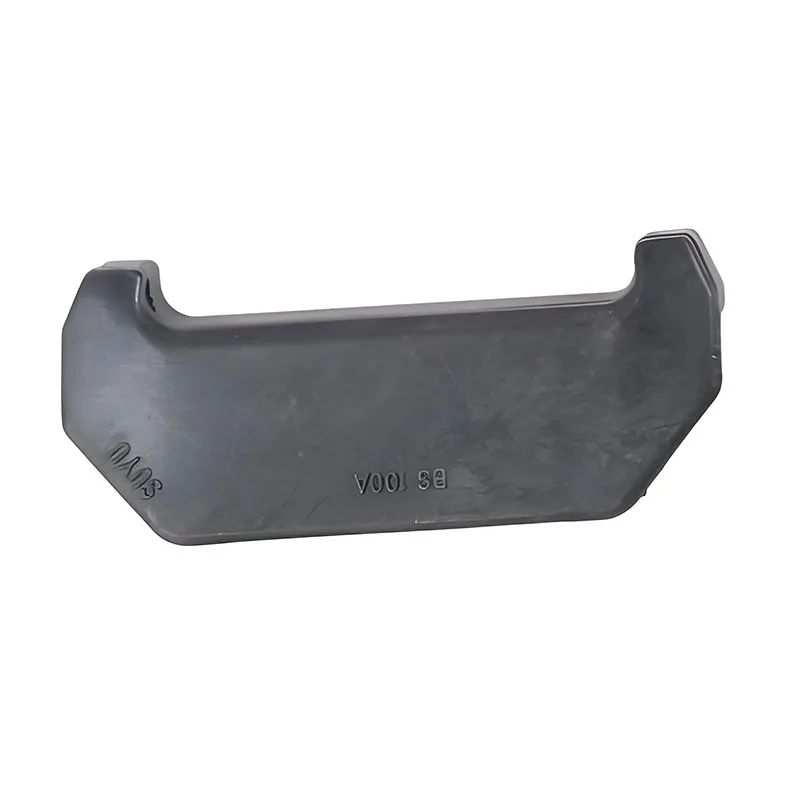

2 pcs Rail pad
| Item included | Quantity | Material | Size | Remark |
| E clip | 4 | 60Si2MnA, 60Si2CrA | Dia. 16mm,18mm or 20mm (E1809, E2006,E2007,E2009,etc | Hardness: 44-48HRC |
| Toe Load: Dia.16mm: 500-700kgf; Dia.18mm:750-900kgf; Dia.20mm:1100-1400kgf | ||||
| Fatigue life: 5 millions cycles without breaking | ||||
| Standard: DIN17221, BS970, GB/T1222 | ||||
| Shoulder | 4 | QT500-7, QT450-10 | For UIC54, UIC60, 115RE, BS80lbs, BS100lbs, 50kg rail, 60kg rail, etc. | Note: Hardness of E-clip is 44-48HRC; Toe Load for E-clip is 500-700kgf (Dia.16mm); 750-900kgf(Dia.18mm); 1100-1400kgf(Dia.20mm); Fatigue life of E-clip is 5 millions cycles without breaking DIN17221, BS970, GB/T1222 qualified E-clip |
| Rail pad | 2 | HDPE, rubber or EVA | ||
| Insulator | 4 | Reinforced Nylon 66 (PA66) |
The Nabla clip rail fastening system is a commonly used solution for securing railway tracks, consisting of Nabla elastic clips and connecting plates that join the rails to the sleepers.
The SKL clip rail fastening system is widely used for both ballasted tracks and concrete sleepers.
The KPO clamp rail fastening system is a commonly used solution for securing railway tracks.
The fist rail fastening system is firstly developed in Sweden. This rail fastening system is widely used in the railroad in South Africa, Zimbabwe, Botswana, Swaziland and Namibia.
The demand for fast clip rail fastening system is growing faster than other railroad fastener in the industry.
W14HH type rail fastening system is designed for heavy haul rail with a maximum acceptable axle load of 350 kN.
The W14 fastening system is designed according to the EN13481-2 standard, allowing a maximum axle load of 260kN.
The W30 rail fastening system is widely used on ballasted tracks and concrete sleepers.
The RNY rail fastening system is designed for use in railway projects across Mexico and North America, specifically for securing 115RE rails on concrete sleepers.
The NY-ES rail fastening system is designed for railway projects in Mexico and North America, specifically for securing 115RE rails on concrete sleepers.
The NY-GN rail fastening system is specifically designed for railway projects in Mexico and North America, ideal for securing 115RE rails on concrete sleepers.
The E-clip rail fastening system is a widely adopted solution for securing railway tracks, featuring E-clip fasteners along with iron pads or embedded fittings that connect the rails to the sleepers.
