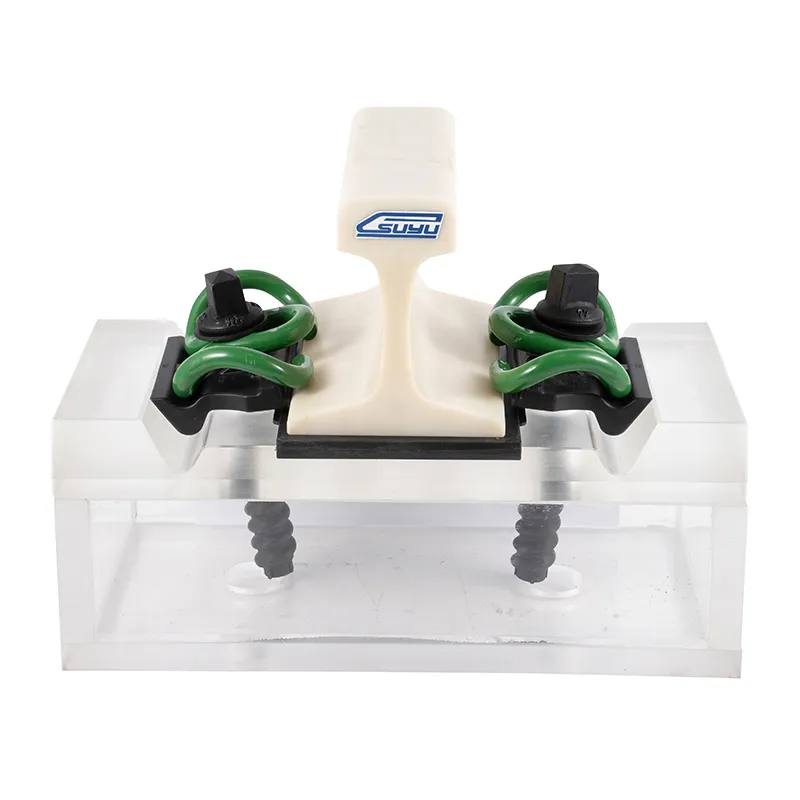

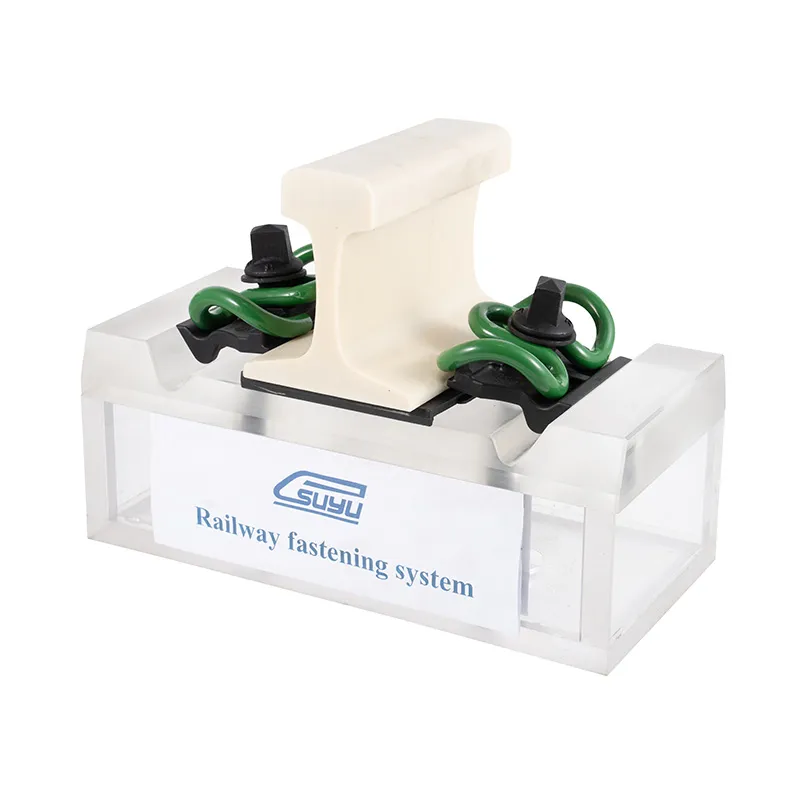

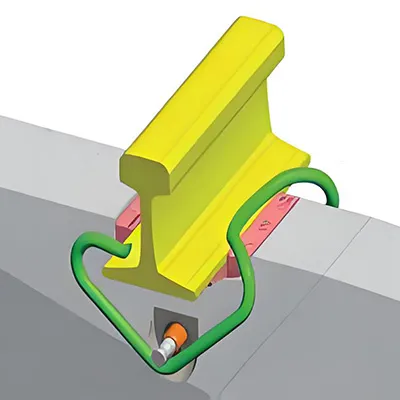

W14HH type rail fastening system is designed for heavy haul rail with a maximum acceptable axle load of 350 kN.

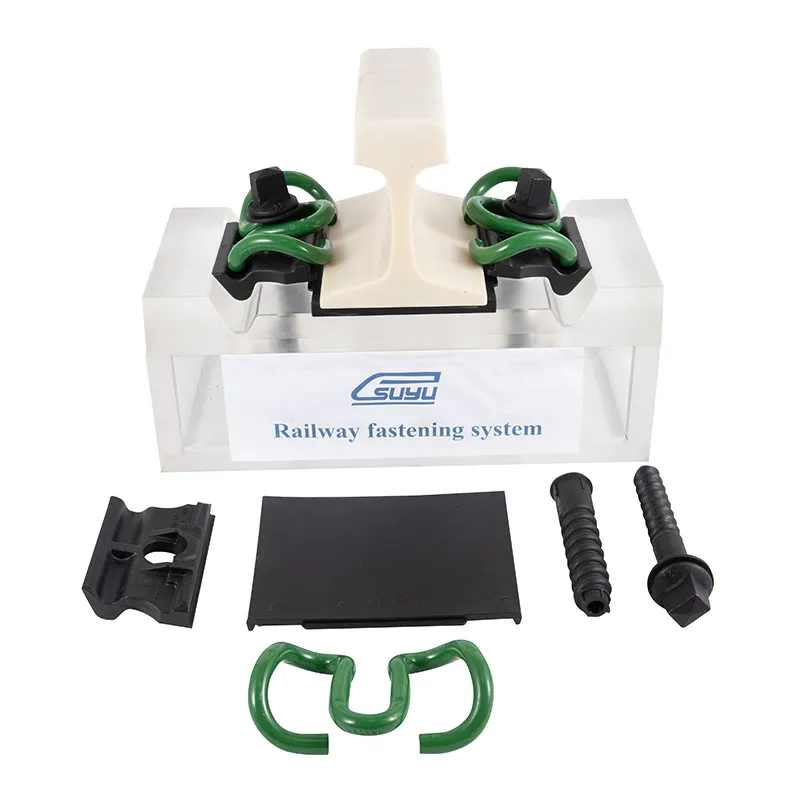

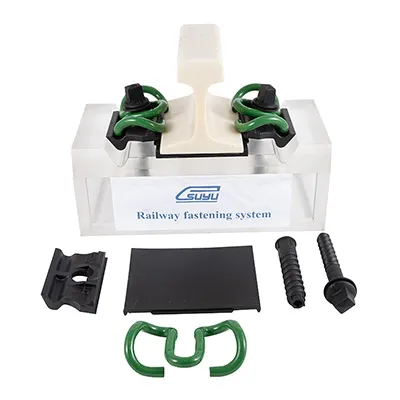

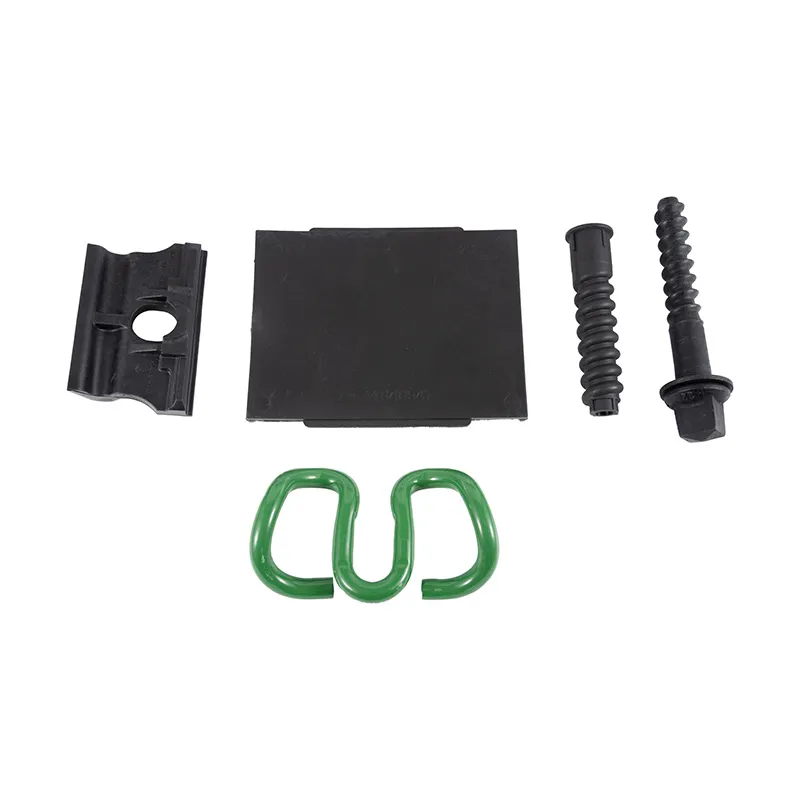

One complete set includes:
sleeper screw
rail clips
guide plates
rail pads
plastic dowels
| Part name | Item | Technical requirement | Remark | |

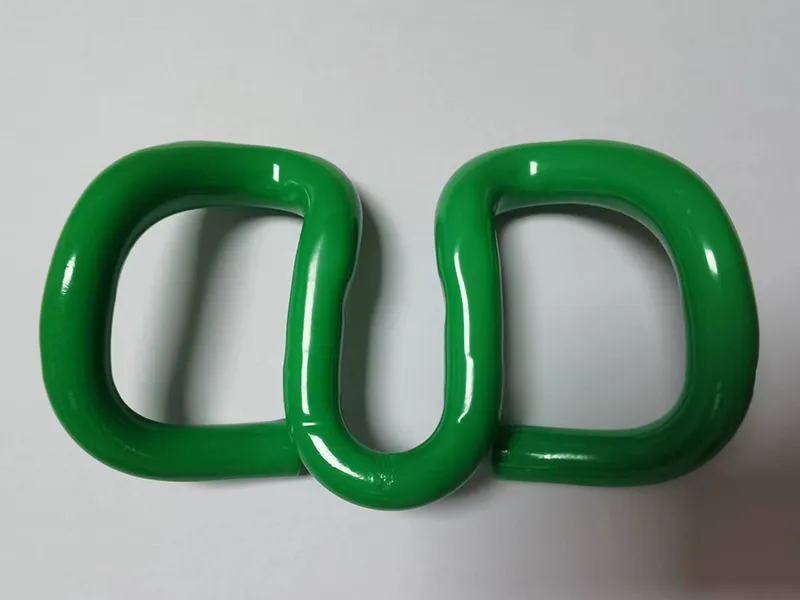

| SKL14R clip | Type | Dia.14mm | Application for different rail types | |
| Material | 60Si2Mn | Chemical composition(%): C: 0.57, Mn: 0.75, Si: 1.73, Cr: 0.07, P:≤0.015, S: ≤0.006 | ||
| Finish | Plain oiled, painting, or upon request | 500 hours salt spry test | ||
| Hardness | 42-47HRC | |||
| Fatigue life | When clip spring deflection is 9.1mm, swing is 1.42mm, fatigue life is up to 3 million cycles without breaking. | |||
| Standard refers to | DIN17221, GB/T1222 | |||

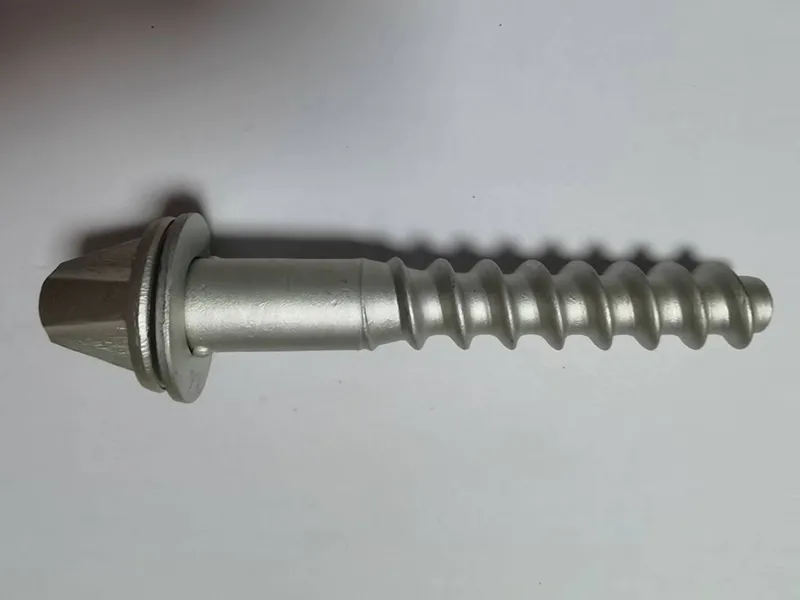

| DHS35-161 screw spike | Type | M24x161mm | ||
| Grade | Grade 5.6: 35# | Tensile strength: ≥500Mpa, Yield strength: ≥300Mpa, Elongation: ≥20%, Cold bending: 90 degree without crack | ||
| Finish | Plain oiled, oxide black, zinc plated, hot dip galvanized, Dacromet, Sherardizing | 500 hours salt spry test | ||
| Standard refers to | ISO898-1, UIC864-1, and NF F500-50 | |||
| Flat washer ULS7 | Type | Uls7 | ||
| Material | Q235 | |||
| Finish | Plain oiled, Oxide black, Zinc plated, Hot dip galvanized, Dacromet, Sherardizing | 500 hours salt spry test | ||
| Standard refers to | EN10025, EN10139 | |||

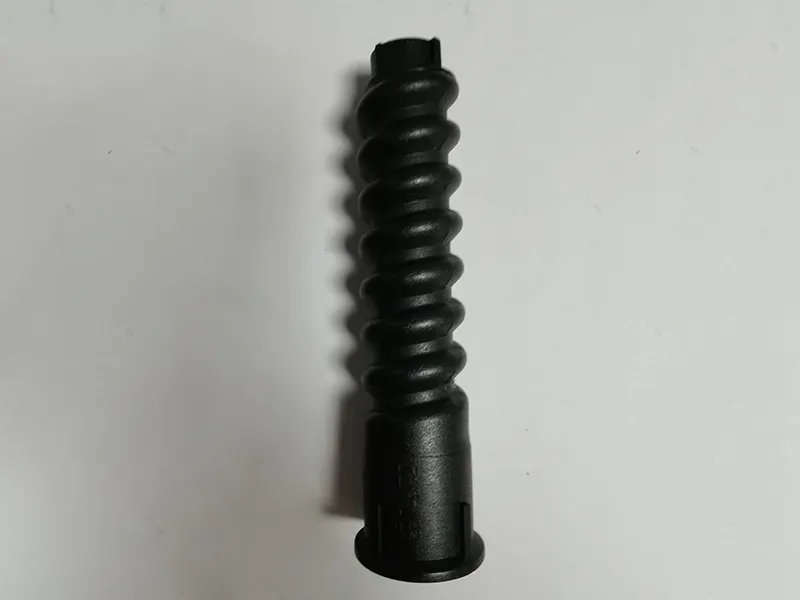

| Plastic dowel SDU25 | Type | For different sizes of screw spike | ||
| Material | Reinforced Nylon 6 (PA6) | Density: 1.15g/㎝3, Tensile strength: 66.3Mpa, Elongation: 31.3%, Melting point: 228℃, Insulation resistance: ≥2.8×1012Ω, Hardness: ≥114HRR | ||
| Color | Black | |||

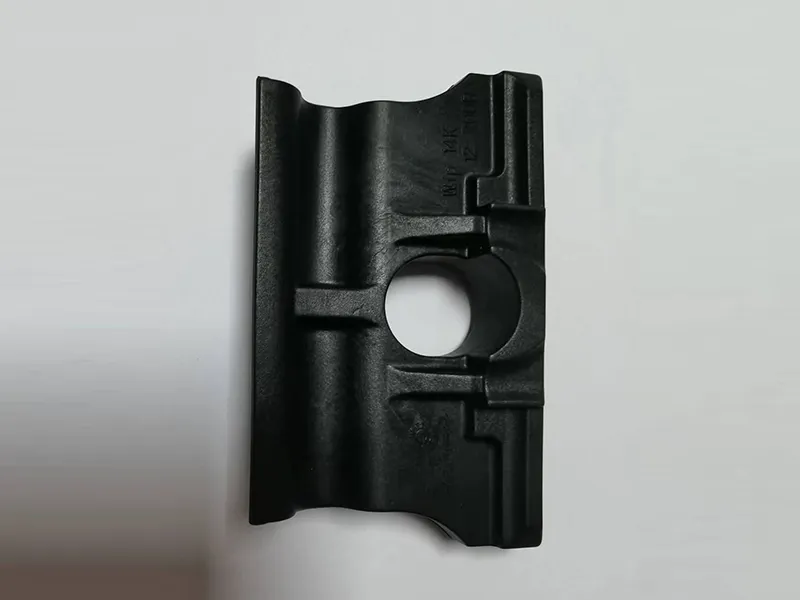

| Guide plate Wfp14k 700R | Type | UIC54,115RE rail, and size as ordered | ||
| Material | Reinforced Nylon 6 (PA6+30%GF) | Density: 1.39g/㎝3, Tensile strength: 165Mpa, Elongation: 3.5%, Melting point: 226℃, Insulation resistance: ≥1.9×1012Ω, Glass fiber content: 30-35%, Hardness: ≥114HRR | ||
| Color | Black | |||

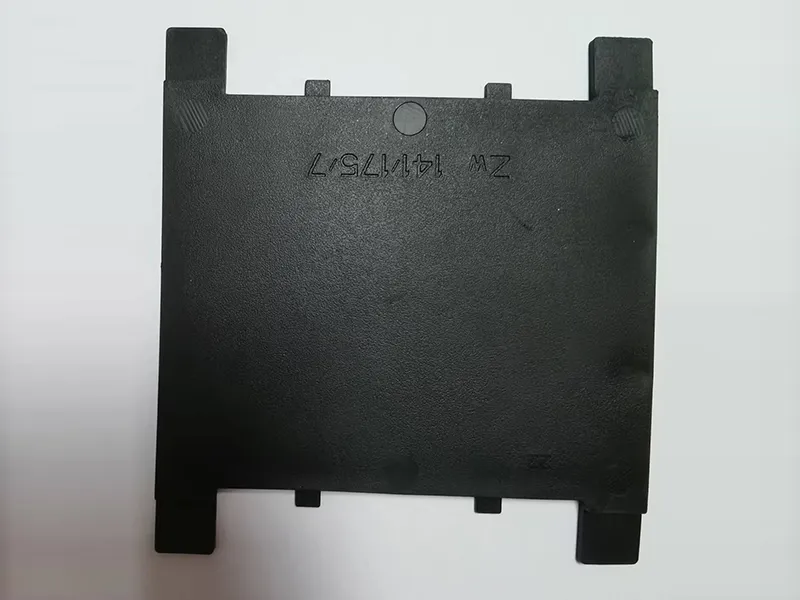

| Rail pad Zw-141-175-7 | Type | UIC54, 115RE rail, and size as ordered | ||
| Material | TPE (Thermoplastic Elastomer ) | Density: 1.09g/㎝3, Tensile strength: 4.23Mpa, Tensile Modulus: 2.97Mpa, Melting point: 200-220℃, Shore hardness: ≥40D | ||
| Color | Black | |||
The W14 fastening system is designed according to the EN13481-2 standard, allowing a maximum axle load of 260kN.
The W30 rail fastening system is widely used on ballasted tracks and concrete sleepers.
The RNY rail fastening system is designed for use in railway projects across Mexico and North America, specifically for securing 115RE rails on concrete sleepers.
The NY-ES rail fastening system is designed for railway projects in Mexico and North America, specifically for securing 115RE rails on concrete sleepers.

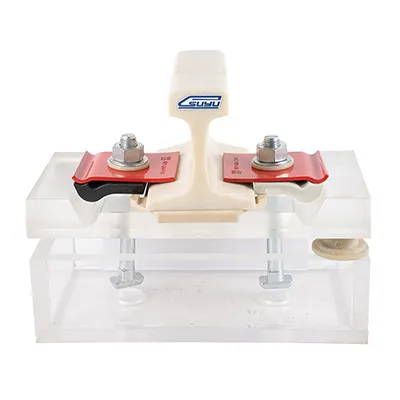

The NY-GN rail fastening system is specifically designed for railway projects in Mexico and North America, ideal for securing 115RE rails on concrete sleepers.

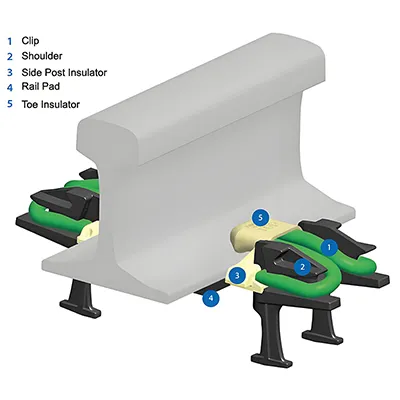

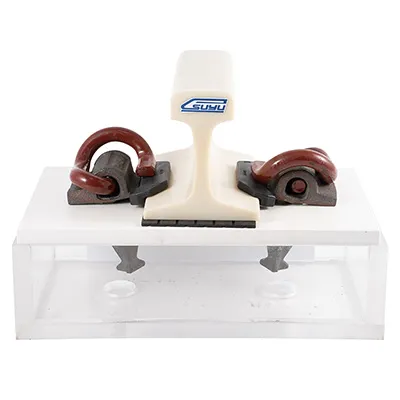

The E-clip rail fastening system is a widely adopted solution for securing railway tracks, featuring E-clip fasteners along with iron pads or embedded fittings that connect the rails to the sleepers.

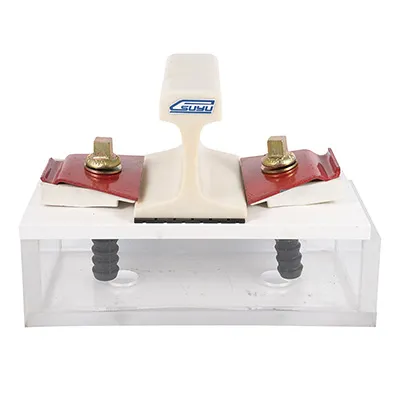

The Nabla clip rail fastening system is a commonly used solution for securing railway tracks, consisting of Nabla elastic clips and connecting plates that join the rails to the sleepers.

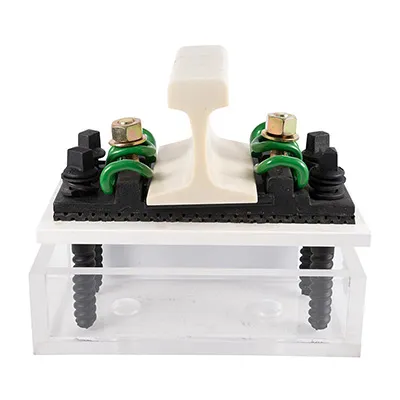

The SKL clip rail fastening system is widely used for both ballasted tracks and concrete sleepers.

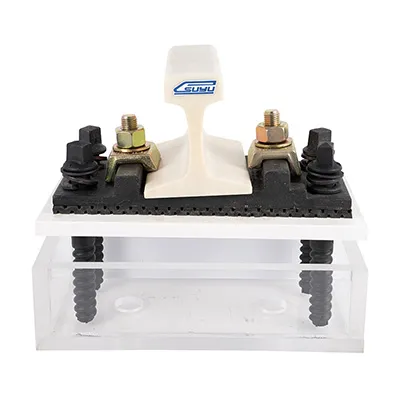

The KPO clamp rail fastening system is a commonly used solution for securing railway tracks.
