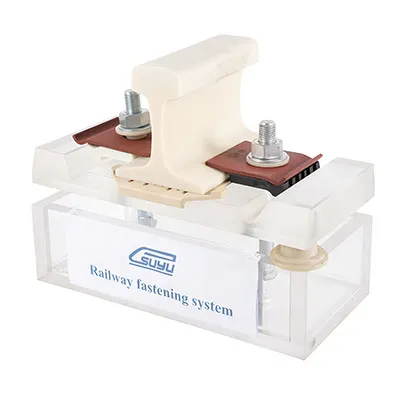

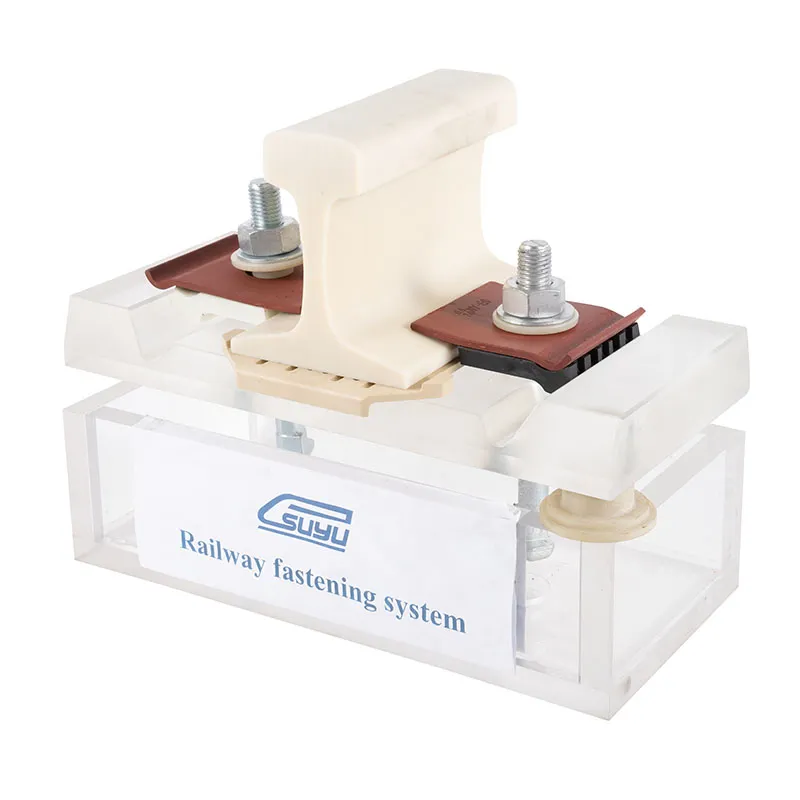

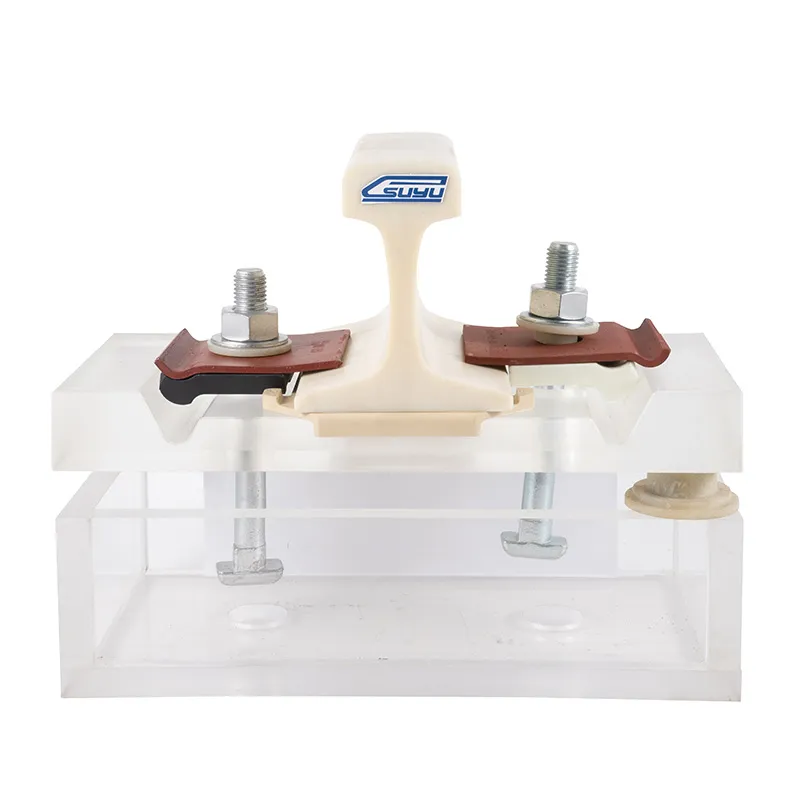

The NY-ES rail fastening system is designed for railway projects in Mexico and North America, specifically for securing 115RE rails on concrete sleepers. This system stands out for its cost-effectiveness, ease of installation and easier maintenance compared to other fastening systems.
Its design ensures that installation and operations are less complex, which contributes to reduced labor and service costs. It is favored for its simplicity, reliability, and ability to maintain the safety and stability of railway tracks.

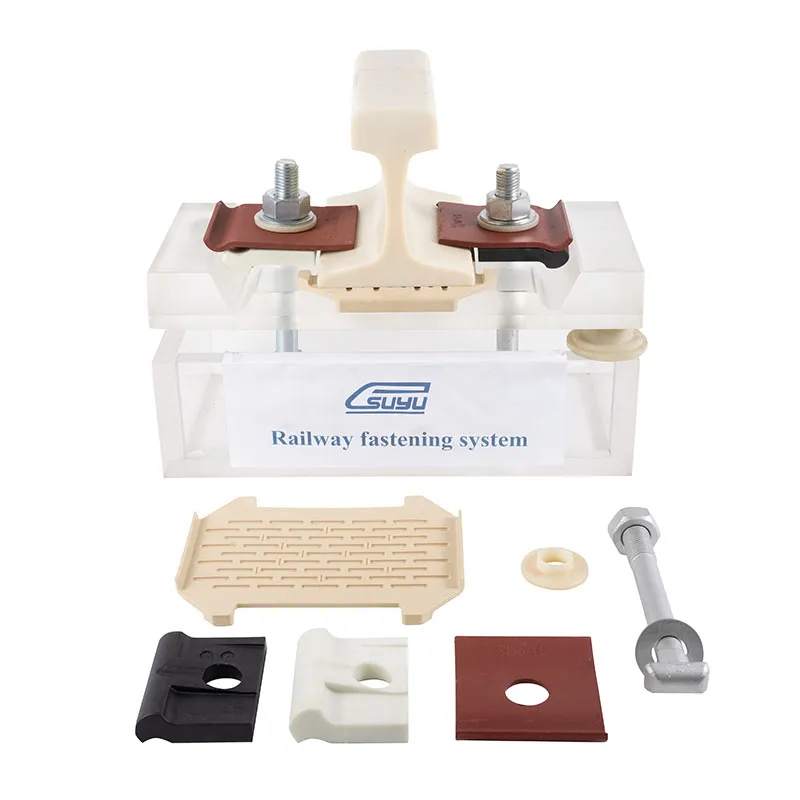

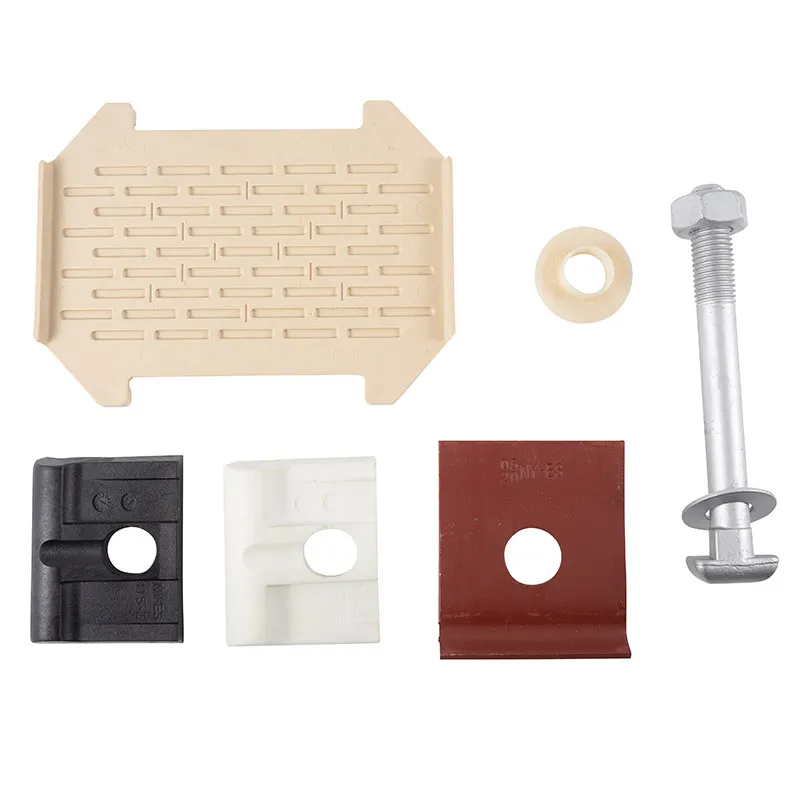

The complete NY-ES fastening system for each sleeper consists of the following components
Interior Insulator(2 pcs)
Exterior Insulator(2 pcs)
Rail pad U-2(2 pcs)
Insulating bush(4 pcs)
ES spring blade(4 pcs)
SL bolt with nut & flat washer 7/8*201(4 pcs)
| Part name | Item | Technical requirement | Remark |

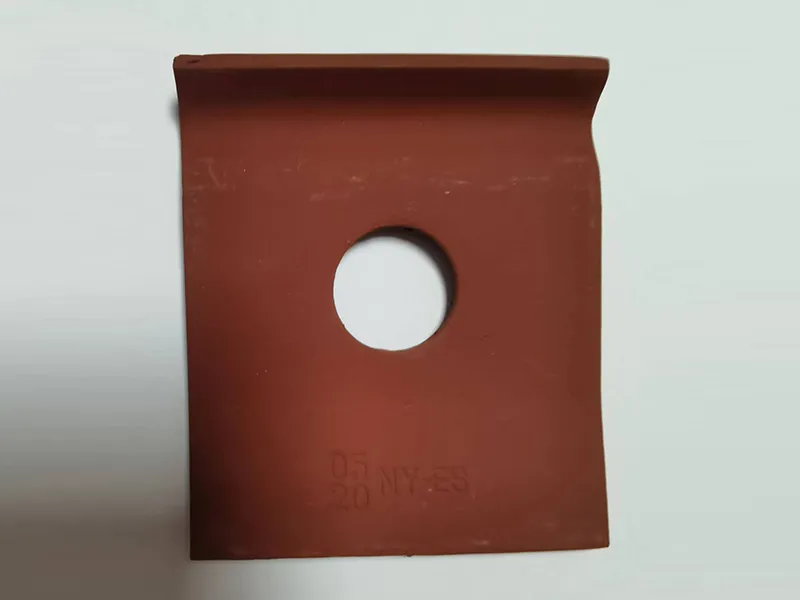

| NY-ES elastic plate | Type | 5mm Thickness | Application for different rail type |
| Material | 60Si2Mn | Chemical composition(%): C: 0.56-0.64, Mn: 0.60-0.90, Si: 1.60-2.00, Cr: ≤0.35, P: ≤0.03, S: ≤0.03 | |
| Finish | Plain oiled, red color painting, or upon request | Offered as ordered | |
| Hardness | 42-47HRC | ||
| Standard refers to | DIN17221, GB/T1222 | ||

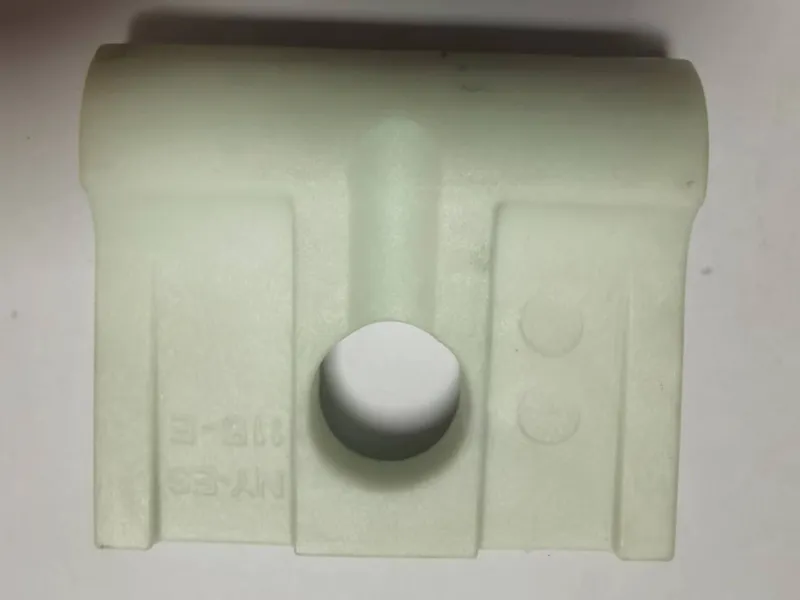

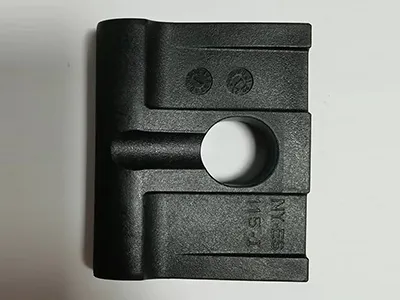

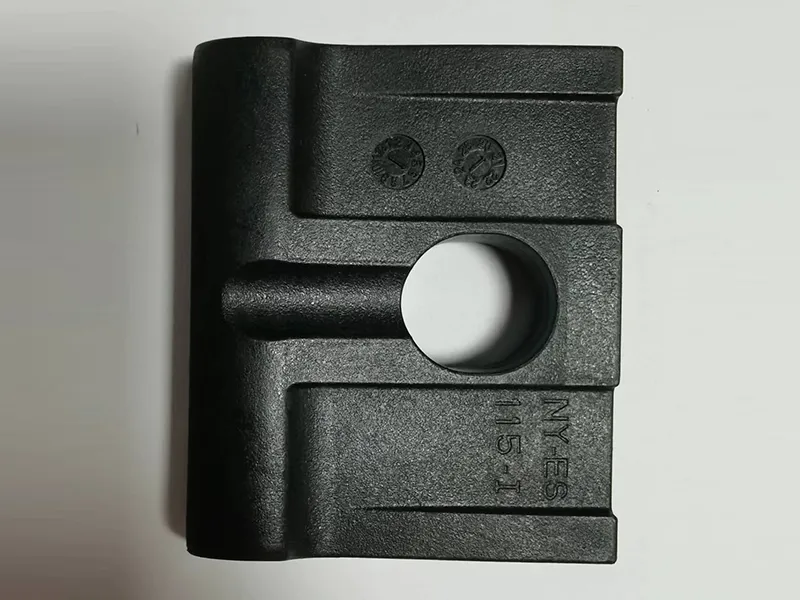

| NY-ES Insulator (Interior & Exterior) | Type | Suitable for UIC54, 115RE rails | |
| Material | Reinforced Nylon 6 (PA6+30%GF) | Density:1.39g/cm3, Tensile strength:165Mpa, Elongation: 3.5%, Melting point:226℃, Insulation resistance:≥1.9×1012Ω, Glass fiber content:30-35%, Hardness:≥114HRR | |
| Color | Black, white or upon request | ||

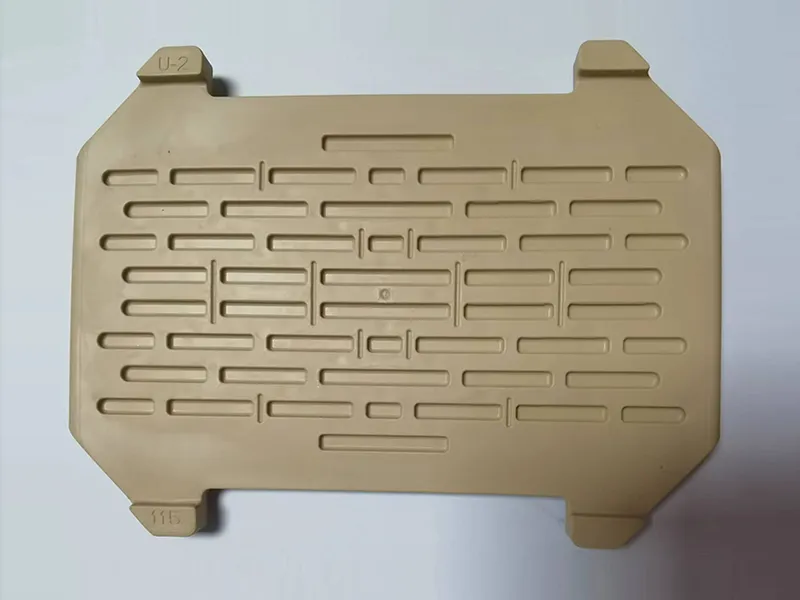

| Rail pad U-2 | Type | Suitable for UIC54, 115RE rails | |
| Material | TPE (Thermoplastic Elastomer ) | Density:1.09g/cm3, Tensile strength: 4.23Mpa, Tensile Modulus: 2.97Mpa, Melting point: 200-220℃, Shore hardness: ≥40D | |
| Finish | Natural | ||

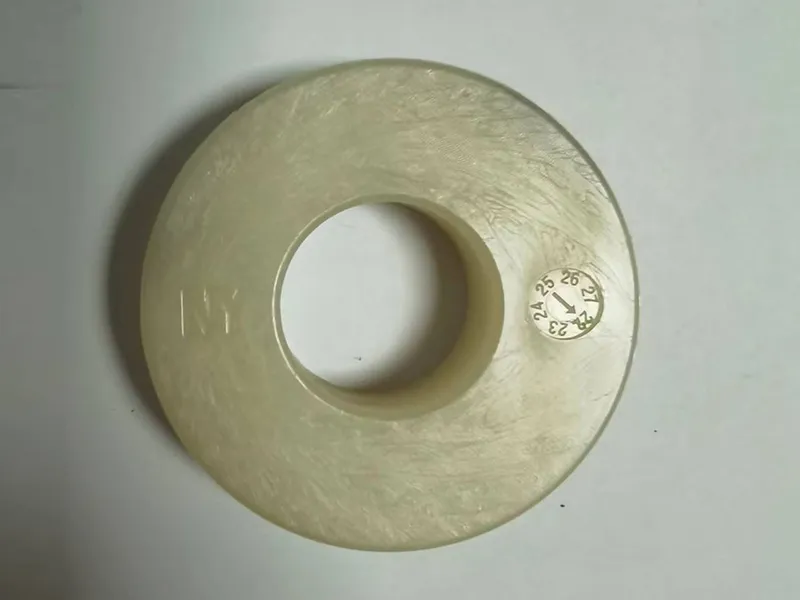

| Nylon washer | Type | NY nylon washer | |
| Material | Reinforced Nylon 6 (PA6) | Density: 1.15g/cm3, Tensile strength: 66.3Mpa, Elongation: 31.3%, Melting point: 228℃, Insulation resistance: ≥2.8×1012Ω, Hardness: ≥114HRR | |
| Finish | Natural | ||

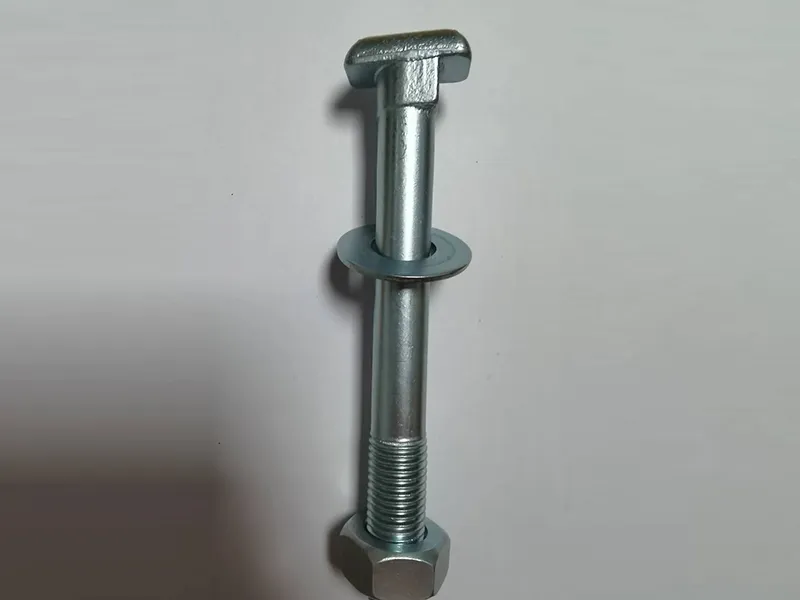

| SL Bolt | Type | 7/8*186/201 | |
| Material | 45# | Chemical composition(%): C:0.45, Mn:0.65, Si:0.25, P:0.016, S: 0.001 | |
| Finish | Plain oiled, oxide black, zinc plated, hot dip galvanized | ||
| Grade | 8.8 | Tensile strength:≥800Mpa, Yield strength: ≥640Mpa, Elongation: ≥12% | |
| Nut | Type | 7/8 | |
| Material | 45# | Chemical composition(%): C: 0.45, Mn: 0.65, Si: 0.25, P: 0.016, S: 0.001 | |
| Finish | Plain oiled, oxide black, zinc plated, hot dip galvanized | ||
| Grade | 8 | HV295-353 | |
| Flat washer | Type | 50*23*3 | |
| Material | Q235 | Chemical composition(%): C: 0.12-0.20, Mn: 0.30-0.70, Si: ≤0.3, P:≤0.045, S: ≤0.045 | |
| Finish | Plain oiled, oxide black, zinc plated, hot dip galvanized | ||
| Hardness | HV200-300 |
